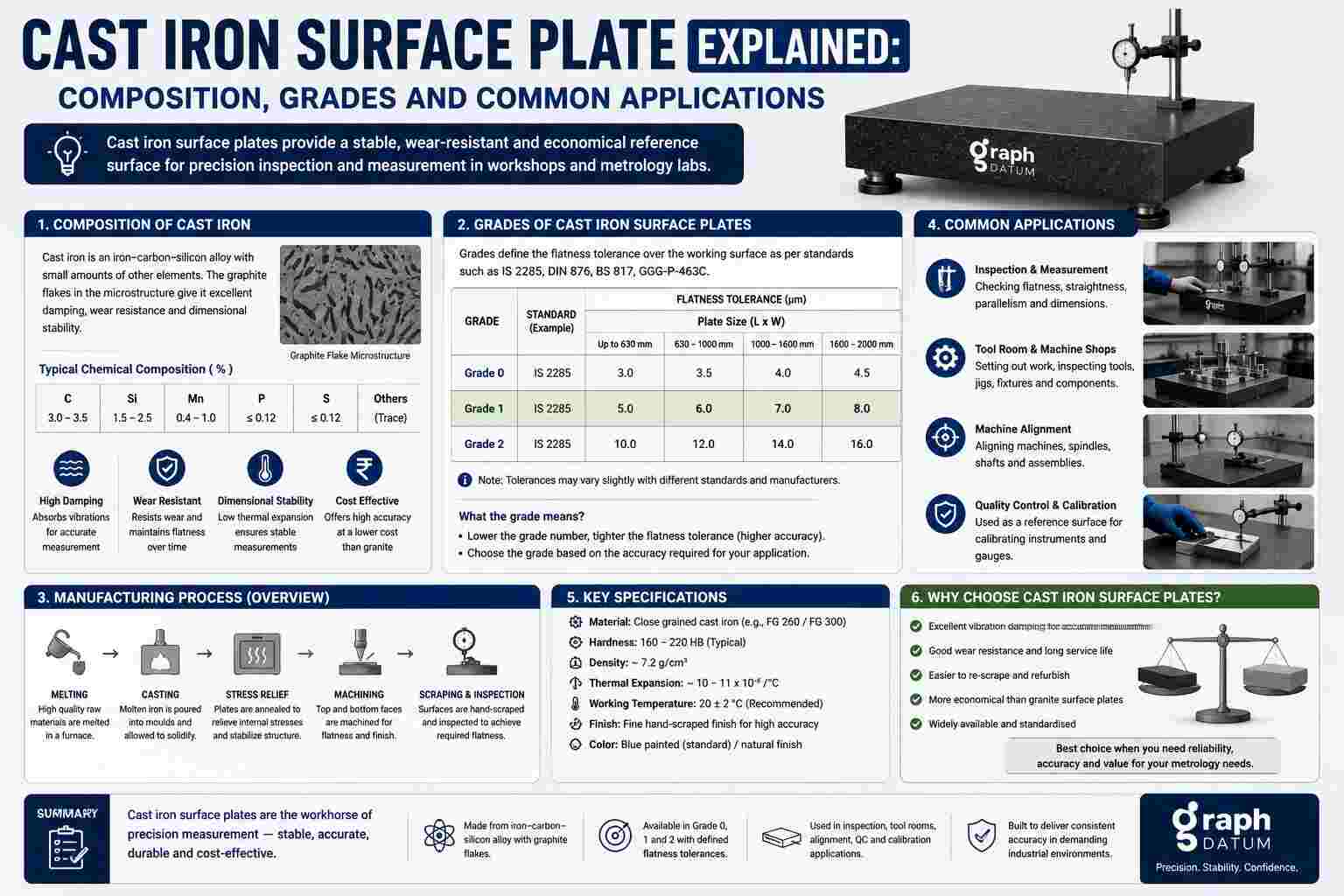

Cast iron surface plates remain a staple of workshops and toolrooms even in an era where granite dominates high-precision metrology labs. Understanding what they’re actually made of, how they’re graded, and where they fit best helps make sense of when a cast iron plate is the right tool for the job — and when it might be worth considering the alternatives instead.
What Cast Iron Surface Plates Are Made Of
Surface plates are typically made from grey cast iron, an iron-carbon alloy where a significant portion of the carbon exists as graphite flakes distributed through the metal’s microstructure, rather than being chemically bound as it is in steel. This graphite content is what gives grey cast iron its characteristic properties for this application: good machinability, natural vibration damping, and reasonably predictable dimensional behavior once the casting has been properly aged.
Before a casting becomes a usable surface plate, it typically goes through a stress-relieving or seasoning process — historically, extended outdoor aging, though modern practice often uses controlled heat treatment — to let internal casting stresses settle out before final finishing. Skipping this step risks the plate slowly warping out of tolerance after it’s put into service, sometimes months after it initially passed inspection. The history of why these plates were traditionally made from cast iron in the first place is covered separately.
How Precision Grades Are Assigned
Like granite plates, cast iron surface plates are graded according to permissible flatness deviation, typically Grade 0, Grade 1, or Grade 2, with the exact numeric tolerance for each grade scaled to the plate’s size under standards such as IS 2285 or comparable national and international specifications. A closer breakdown of Grade 0 vs Grade 1 vs Grade 2 specifically for cast iron plates is available separately.
Grading is verified using the same general methods used for granite — autocollimators, electronic levels, or comparison against a known master surface — mapping the plate’s actual surface against the tolerance zone allowed for its stated grade and size. The result is documented on a calibration certificate that accompanies the plate.
Typical Applications in Workshops and Toolrooms
Cast iron plates are common wherever durability and repairability matter as much as raw precision — marking-out tables in fabrication shops, general inspection work in toolrooms, and as a base for jig and fixture assembly. Their magnetic properties also make them a natural fit for setups using magnetic bases, angle plates, and V-blocks that rely on being able to clamp magnetically to the work surface.
Because cast iron tolerates impact better than granite, it’s also frequently chosen for higher-traffic shop-floor environments where accidental drops or knocks are more likely than in a controlled metrology lab. Bench centres and other cast iron fixtures are often paired with cast iron plates for exactly this reason — a consistent material behavior across the whole inspection setup.
Cast Iron vs Granite at a Glance
The core trade-offs come down to a handful of properties. Cast iron is magnetic, granite is not — relevant if your workflow depends on magnetic fixturing. Granite has a lower coefficient of thermal expansion and better long-term dimensional stability across temperature changes, which matters more in labs with variable ambient conditions. Cast iron is generally more impact-resistant and can be re-scraped or re-ground to restore flatness after wear, while granite chips rather than dents and is typically replaced or professionally re-lapped rather than field-repaired.
Cost and weight also factor in — cast iron plates are often more economical at a given size, though both materials scale in price and weight considerably with size and grade. Neither material is universally “better”; the right choice depends on the environment, the instruments being used, and how the plate will be handled day to day. A dedicated granite vs cast iron surface plate comparison walks through these trade-offs in more detail.
Maintenance Considerations
The main maintenance difference is corrosion. Cast iron rusts if left unprotected, so plates are typically kept lightly oiled and covered when not in use, especially in humid environments. Granite doesn’t share this concern, though both materials still need regular cleaning to keep debris from affecting flatness readings or damaging parts placed on the surface.
Periodic recalibration applies to both materials equally — flatness can drift with wear and use regardless of what the plate is made from, which is why routine calibration checks matter more than the material choice itself. A well-maintained cast iron plate, oiled and covered between uses, can hold its certified accuracy for a long working life.
How to Evaluate a Cast Iron Plate Before Buying
A few practical checks help separate a well-made cast iron plate from a poorly finished one. Confirm the plate has gone through a proper stress-relieving process, since a casting rushed straight from the foundry to final machining is more likely to warp after it’s put into service. Ask for the calibration certificate and confirm which standard and grade it references, rather than accepting a general claim of “precision ground” without documentation.
It’s also worth checking the plate’s working area boundary and confirming it’s clearly marked, along with reviewing how the manufacturer recommends supporting and levelling it once installed — a plate that arrives accurate can still perform poorly if it’s set up incorrectly, regardless of how well it was made. Guidance on exactly when to use cast iron surface plates over granite is covered separately.
FAQs
Can a cast iron surface plate reach Grade 0 precision?
It’s possible for smaller sizes, though cast iron plates are more commonly supplied at Grade 1 or Grade 2 for practical workshop use, with Grade 0 more frequently associated with granite for lab and reference applications.
Why does cast iron need to be oiled?
Cast iron is prone to surface rust when exposed to moisture and air, so a light protective oil film is standard practice to prevent corrosion from affecting the plate’s flatness and finish.
Is cast iron heavier than granite for the same size plate?
Generally cast iron is denser than granite, so a cast iron plate of a given size is typically heavier than a granite plate of the same dimensions, though exact figures vary by specific stone and iron composition.
What does “seasoning” a casting actually involve?
Seasoning allows internal stresses introduced during casting and cooling to relax before final machining and finishing, historically through extended outdoor aging and more commonly today through controlled stress-relief heat treatment, so the plate doesn’t slowly distort after it’s put into service.
